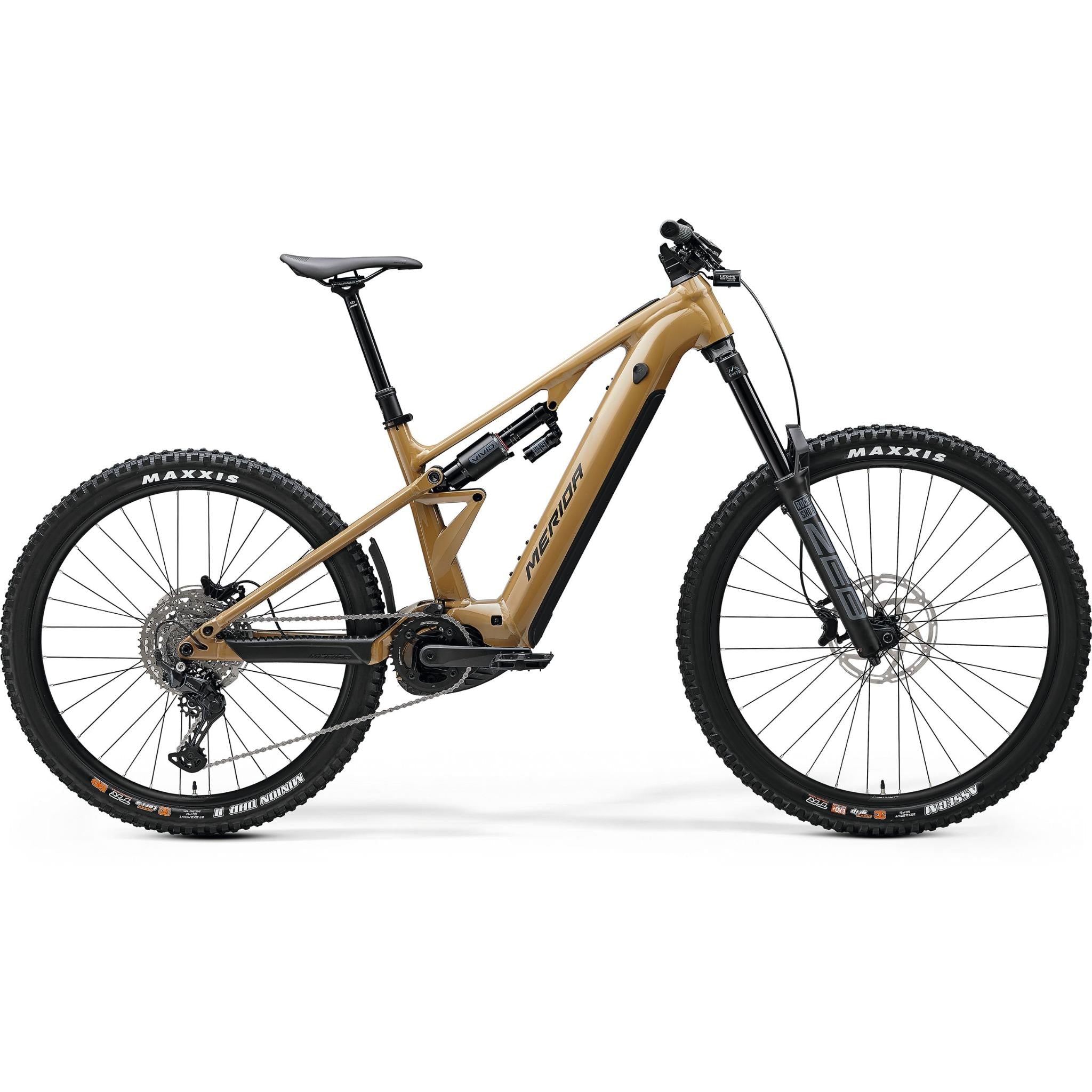

Merida’s electric mountain bike of choice for the big hitters, the big travel eOne-Eighty made for big lines and feature packed bike parks.
‘Merida’s new eOne-Eighty is the most capable long-travel e-bike I’ve ever tested’ – MBR Magazine
‘The eONE-EIGHTY is a perfect match for both freeriders and beginners alike!’ – ebike-mtb.com
At the heart of the eOne-Eighty is the Bosch Performance Line CX drive unit, offering 85nm of smoothly delivered torque. This rider favourite motor runs silent and is proudly one of the most reliable e-mtb units on the market.
Features:
- Bosch Performance Line CX 85Nm motor
- Bosch Power Tube 800Wh battery
- Rock Shox Zeb Base 180mm air fork
- Rock Shox Vivid Base shock
- Shimano CUES 10 speed transmission
- Tektro Gemini 4 piston hydraulic disc brakes
Merida Sizing –
- X-Short: 145cm – 165cm
- Short: 155cm – 175cm
- Mid: 165cm – 185cm
- Long: 175cm – 195cm
- X-Long: 185cm+
Merida’s latest range of mountain bikes makes use of a slightly new approach to sizing. Merida encourage riders to consider their riding style when selecting a frame size.
For example the Mid size frame is suitable for riders of heights between 165-185cm. This means a rider of height 175cm could select a Short frame if the preference is agility, Mid for a balanced ride or Long for stability.
Contact us at support@biketart.com if you wish to discuss which may work for you.
Specifications::eOne-Eighty 500
FRAME – eONE-EIGHTY LITE I ; alloy; 160mm travel; 29” x 2,6” max. tyre size; 148x12mm bolt through axle; intube;
MOTOR – Bosch Performance Line CX
BATTERY – Bosch PowerTube 800; 800Wh
DISPLAY – Bosch Pruion 200
MODE SWITCH – Bosch Mini Remote
SHOCK – Rock Shox Vivid Base
FORK – Rockshox Zeb Baser eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29×2.6″ max. tyre size
SHIFTERS – Shimano Cues U6000-10
REAR DERAILLEUR – Shimano CUES U6000; GS
CHAINSET– FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
CASSETTE – Shimano Cues LG400; 11-48 teeth; 10 speed
BRAKE LEVER – Tektro Gemini
FRONT BRAKE – Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor
REAR BRAKE – Tektro Gemini M535; 4 piston hydraulic disc brake with Tektro TR203-45; 203mm rotor
HANDLEBAR – Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise
STEM – Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes
HEADSET – Acros ICR Merida external neck with Blocklock
SADDLE – Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool
SEATPOST – Merida Expert TR II; 34.9mm diameter; 0 mm lay back; XS: 125 SPT – S: 150 SPT – M/L/XL: 200 SPT – XL: 230 SPT
RIMS – Merida Expert TR II; 110×15 WHF; 148×12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29″; rear 27.5″
FRONT HUB – Shimano TC500; 15x100mm; 32 spoke; Centerlock
REAR HUB – Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key
FRONT TYRE – Maxxis Assegai; 29×2.5″; kevlar bead; TR EXO+ 3C MaxxGrip
REAR TYRE – Maxxis Minion DHR II; 27.5×2.4″; kevlar bead; 3C DD TR MaxxTerra
FRONT LIGHT – Lezyne Hecto StVZO E350+ Reverse
REAR LIGHT – USB REAR Light CG-214RG
